Profil contractie beton









Tub de contractie conceput pentru rosturile de constuctie controlate.

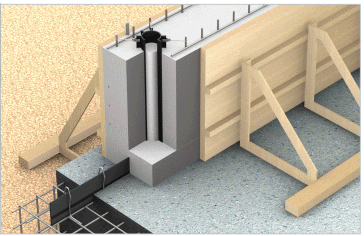

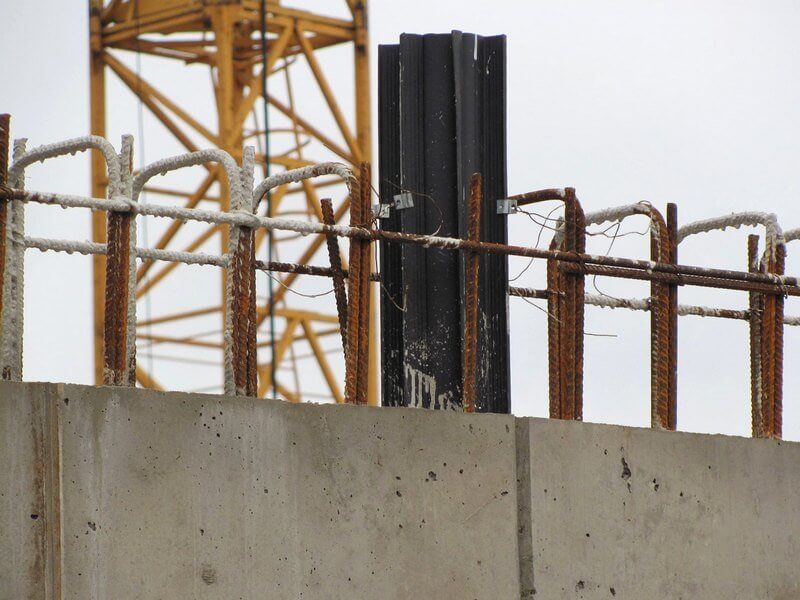

Tub de contractie este o conducta din cauciuc care se monteaza in rosturile de constructie controlate la intersectia unor pereti de beton

Aplicatii:
Tuburile de contractie se folosesc la punctele de fisurare predeterminate.
Caracteristici:
Tuburile de  folosesc pentru a reduce sectiunea transversala si etansarea prin intermediul unui design special, ele avand profilul din PVC moale cu tub interior din PVC rigid.

Tipuri de produse

Material: Material: PVC
Tipul	Diametrul exterior fara ancore (mm))	Inaltimea ancorelor (mm)
S 1	88	25
S 2	175	25
S 3	60	25



Properties	Unit	Requirements	Tested per
External form	–	No cracks, rifts	Visual evaluation
Shore hardness	˚Sh	83±5	PN-EN ISO 868:2005
Stretch resistance	MPa	≥ 9	PN-EN ISO 527-2:1998
Relative elongation at break	%	≥ 200	PN-EN ISO 527-2:1998
Shear resistance	N/mm	≥ 8	PN- ISO 34-1:2007
Low temperature behaviour, -20 ˚C,  relative elongation at break	%	≥100	PN-EN ISO 527-2:1998





Controlled crack inducer pipe
Symbol	a [mm]	d [mm]	f [mm]	Wall width  [mm]	Package [pcs./pallete]	Sales  unit	Weight [kg/mb]	Art. no.
Type S1 L=3 m	128	88	25	240÷350	100	pcs. = 3m	2,80	SU-TU-RR-0-02357
Type S1 L=4 m						pcs. = 4m		SU-TU-RR-0-02358
Type S1 L=5 m						pcs. = 5m		SU-TU-RR-0-02359
Type S2 L=3 m	235	175	25	350÷500	50	pcs. = 3m	5,50	SU-TU-RR-0-02360
Type S2 L=4 m						pcs. = 4m		SU-TU-RR-0-02361
Type S2 L=5 m						pcs. = 5m		SU-TU-RR-0-02362
Type S2 L=7 m						pcs. = 7m		SU-TU-RR-0-02363
